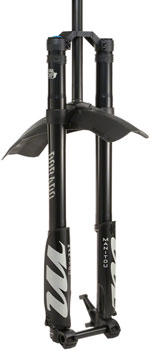

Manitou Dorado Comp Suspension Fork - 27.5", 203 mm, 20 x 110 mm, 47 mm Offset, Straight Steerer, Black, Gen 2 Black EA Suspension Fork
191-37873-A302 Manitou Manitou Dorado Comp Suspension Fork - 27.5", 203 mm, 20 x 110 mm, 47 mm Offset, Straight Steerer, Black, Gen 2 Suspension Fork EA 37mm Black Steerer Type Straight Lockout Switch None Brake Type Post Mount 203 Negative Spring Coil Travel (mm) 203 Offset 47 Axle to Crown Length 582 Front Axle 20mm Thru x 110mm Maximum Tire Width 67 S.H.I.S. Stem Clamp Diameter Direct Mount S.H.I.S. Stem Clamp Diameter 28.6 Color Black Crown Race 30 Weight 3565 Wheel Size 27.5" External Adjustments Rebound Damping External Adjustments Low Speed Compression Damping External Adjustments Coil Preload Defined Color Black Positive Spring Coil Stanchion Diameter 37 Steerer Tube Length (mm) 251
$1,299.99
Special order — usually a few days
Pickup in store — checkout online is on its way.
37mm 6000 Series aluminum stanchions with 6000 Series aluminum upper tubes
Aluminum upper and lower crown, and steerer
Inverted forks offer an incredibly smooth and consistent feel due to the constant lubrication of the bushings and seals and also provide a major increase in fore-aft stiffness with much longer bushing overlap compared to traditional fork designs
TPC adjustment with low speed compression, spring preload, rebound
Coil sprung, with up to five spring rates available separately
New direct mount fender is reversible, allowing for two orientations "moto" for increased front of fork coverage, bike" for increased behind fork coverage
180, 190, 203mm internally adjustable travel
Specs
Steerer TypeStraight
Lockout SwitchNone
Brake TypePost Mount 203
Negative SpringCoil
Travel (mm)203
Offset47
Axle to Crown Length582
Front Axle20mm Thru x 110mm
Maximum Tire Width67
S.H.I.S. Stem Clamp DiameterDirect Mount
S.H.I.S. Stem Clamp Diameter28.6
ColorBlack
Crown Race30
Weight3565
Wheel Size27.5"
External AdjustmentsRebound Damping
External AdjustmentsLow Speed Compression Damping
External AdjustmentsCoil Preload
Defined ColorBlack
Positive SpringCoil
Stanchion Diameter37
Steerer Tube Length (mm)251
FK0937 · UPC 844171009338
