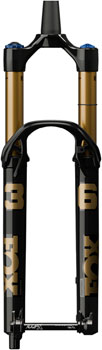

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT, Shiny Black Shiny Black EA Suspension Fork
FOX

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT, Shiny Black Shiny Black EA Suspension Fork

910-21-432 FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT, Shiny Black Suspension Fork EA 30mm Shiny Black Steerer Type Tapered Lockout Switch Crown Brake Type Post Mount 200 Negative Spring Air Travel (mm) 160 Offset 44 Axle to Crown Length 576 Front Axle 15mm Thru x 110mm Maximum Tire Width 66 S.H.I.S. Stem Clamp Diameter 28.6 Color Shiny Black Crown Race 40 Wheel Size 29" External Adjustments High Speed Compression Damping External Adjustments Low Speed Compression Damping External Adjustments Rebound Damping Defined Color Black Positive Spring Air keyword search FOX Model Year 27 , FOX MY27 Stanchion Diameter 36
$1,299.00
Special order — usually a few days
Pickup in store — checkout online is on its way.

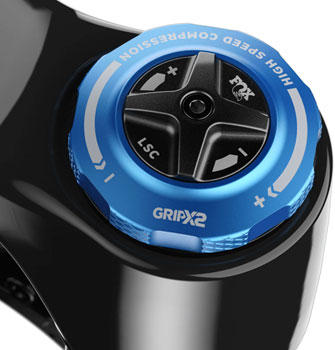

4-way adjustable GRIP X2, with all new piston and tune, is the most tunable, supportive and smoothest descent-focused damper ever created by FOX Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance The seamlessly compliant FLOAT Glidecore air spring reduces friction and bind by moving with the fork under dynamic load for a smoother suspension action Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase Redesigned bleeders are sleeker and easier to operate Kabolt-X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design Kashima Coating on upper tubes for added smoothness and durability

Specs

Steerer TypeTapered
Lockout SwitchCrown
Brake TypePost Mount 200
Negative SpringAir
Travel (mm)160
Offset44
Axle to Crown Length576
Front Axle15mm Thru x 110mm
Maximum Tire Width66
S.H.I.S. Stem Clamp Diameter28.6
ColorShiny Black
Crown Race40
Wheel Size29"
External AdjustmentsHigh Speed Compression Damping
External AdjustmentsLow Speed Compression Damping
External AdjustmentsRebound Damping
Defined ColorBlack
Positive SpringAir
keyword searchFOX Model Year 27 , FOX MY27
Stanchion Diameter36
FK2889 · UPC 821973525266
